Maverick 10' 2 in 1 Brake/Shear Combo
Maverick 10' 2 in 1 Brake/Shear Combo
Regular price
$28,995.00 USD
Regular price
$25,950.00 USD
Sale price
$28,995.00 USD
Unit price
per
Couldn't load pickup availability

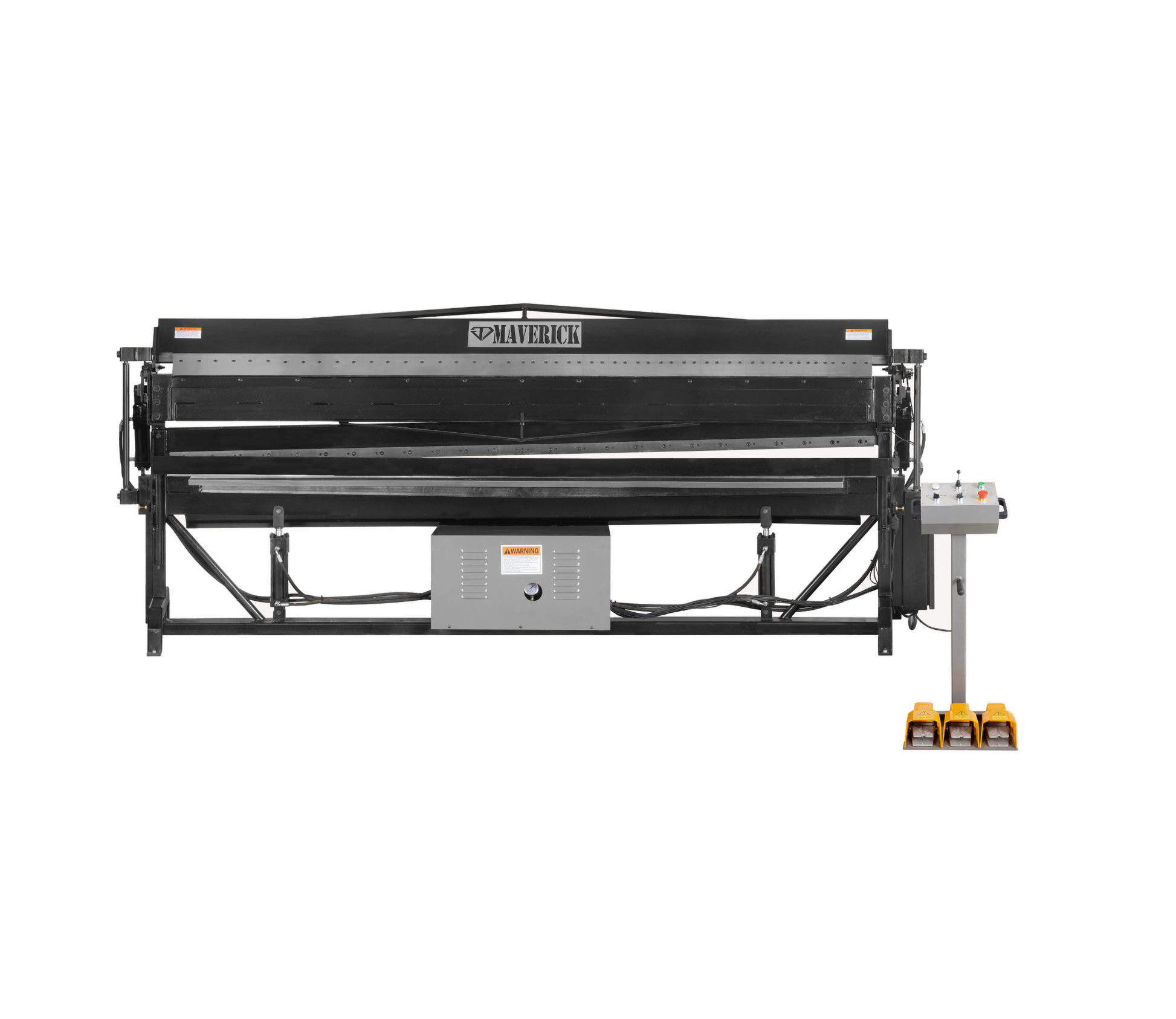

The Maverick 10' Brake/Shear Combo. The Maverick combines two essential needs amongst all sheet metal fabrication shops. The ability to bend and cut metal. Its 2-1 compact construction makes operation transitions effortless. Hydraulically powered by a 3hp 220V single-phase motor is convenient for locations where 3-phase power is not accessible. Includes a mobile control panel allowing operators to work independently from a safe distance.
Shear Features:
- Features hardened steel blades. "Longevity "
- Blade Gap Adjustment for shearing different material thicknesses. " Shimless"
- Optional shear back gauge "set with an easy-to-read scale from 0" to 20".
- Material support table.
- Support Drop " deflects cut-offs away from the machine. "
- Spring Hold Down " Secures material in place when cutting. "
- Mobile Control Panel w/ Emergency Stop " Can be moved to either side of the machine."
- Brake Features:
- Electronic Bend Stop w/ Degree Dial Calibration "For repetitive bends."
- Hem: Max 28ga Mild Steel, 26Ga Aluminum, 32Ga Stainless
- Robust Tie Rods
- Removable Finger "for bending box and pans 2 1/4" Box Depth." 2"-3pcs, 3"-4pcs, 4"-11pcs,
- 6"-10pcs
- 3" to 20" Handwheel operated back gauge with inch/mm dual scale
- Adjustable upper jaw to permit different material thicknesses up to 18 Gauge Mild
- Steel.
- Hydraulic Beam Clamping and Bending.
- Auto and Jog mode controls.
- Mobile Control Panel w/ Emergency Stop " Can be moved to either side of the machine."
- Removable Apron for 5/8" reverse bends.
- 6.1" upper beam opening.
- 5Gal Capacity Oil Tank
Specifications:
| Model |
HSBC-1018
|
|
Bending Capacity
|
18 Ga. Mild Steel
22 Ga. Stainless Steel 14 Ga. Aluminum |
|
Shearing Capacity
|
20 Ga. Mild Steel
24 Ga. Stainless Steel 16 Ga. Aluminum |
|
Bending/Shearing Length
|
122"
|
|
Max Box Depth
|
2 1/4"
|
|
Bend Degree
|
0-135
|
|
Reverse Bend
|
5/8"
|
|
Beam Adjustment
|
1"
|
|
Beam Opening
|
6.1"
|
|
Jog Cycle Control
|
Yes
|
|
Back Gauge
|
Brake: 3"-20" ( Hand Wheel w/ inch/mm dual scale )
Shear: 0-20" ( Slide Stop Bar w/ inch/mm dual scale ) |
|
Finger Assortment
|
2" (3), 3" (4) 4" (11) 6" (10) Total 10' 2"
|
|
Emergency Stop
|
Yes
|
|
Main Motor
Hydraulic Oil |
3HP, 220V, 1PH
Shell#68HD |
|
Blade Gap Adjustment
|
Yes
|
|
Shipping Dimensions
|
155" x 45" x 71"
|
|
Shipping Weight
|
3230 lbs |
